ERZIA Technologies is a Spanish manufacturer of microwave amplifiers for defence, space and telecoms applications, and of complete radio links for UAVs (Unmanned Aerial Vehicles). All ERZIA amplifiers are RoHS and REACH compliant.
Catalog of standard microwave amplifiers (pdf)

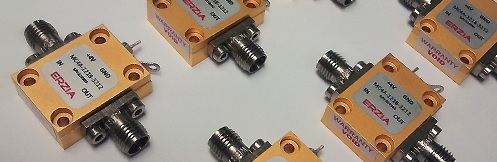

Modular Microwave Amplifiers
ERZIA 's modular microwave amplifiers are available as broadband LNAs or power amplifiers from HF to Q band:
Q Band Power Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-MPA-7500-8300-13 | 75 | 83 | 13 | 18 | Contact us | |
| ERZ-HPA-5000-6600-19 | 50 | 66 | 19 | 20 | Contact us | |
| ERZ-HPA-3300-4700-29 | 33 | 47 | 29 | 30 | M2 | |
| ERZ-HPA-3300-4700-27 | 33 | 47 | 27 | 16 | M1 | |
| ERZ-HPA-3300-4700-27-E | 33 | 47 | 27 | 25 | M2 | |
| ERZ-HPA-3300-4700-24 | 33 | 47 | 24 | 17 | M1 | |
| ERZ-HPA-4100-4600-32 | 41 | 46 | 32 | 28 | Contact us | |
| ERZ-HPA-4300-4600-32 | 43 | 46 | 32 | 27 | Contact us | |
| ERZ-HPA-4100-4500-18-E | 41 | 45 | 18 | 28 | M2 | |
| ERZ-HPA-4100-4500-18 | 41 | 45 | 18 | 14 | M1 | |
| ERZ-HPA-4000-4500-28-E | 40 | 45 | 28 | 23 | M2 | |
| ERZ-HPA-4000-4500-28 | 40 | 45 | 28 | 10 | M1 | |
| ERZ-HPA-3300-4500-23-E | 33 | 45 | 23 | 30 | M2 | |
| ERZ-HPA-3300-4500-23 | 33 | 45 | 23 | 15 | M1 | |
Ka Band Power Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-HPA-2000-4500-24 | 20 | 45 | 24 | 20 | M3 | |
| ERZ-HPA-1700-4300-22-E | 17 | 43 | 22 | 45 | M1 | |
| ERZ-HPA-1700-4300-22 | 17 | 43 | 22 | 25 | M3 | |
| ERZ-HPA-2700-4200-27 | 27 | 42 | 27 | 30 | M2 | |
| ERZ-HPA-3000-4200-26 | 30 | 42 | 26 | 41 | M2 | |
| ERZ-HPA-3000-4200-14 | 30 | 42 | 14 | 21 | M3 | |
| ERZ-HPA-2400-4100-33 | 24 | 41 | 33 | 28 | Contact us | |
| ERZ-HPA-3000-4000-32 | 30 | 40 | 32 | 18 | M2 | |
| ERZ-HPA-3000-4000-32-E | 30 | 40 | 32 | 33 | M2 | |
| ERZ-HPA-2000-4000-24 | 20 | 40 | 24 | 20 | M3 | |
| ERZ-HPA-2000-4000-20 | 20 | 40 | 20 | 22 | M3 | |
| ERZ-HPA-1900-3800-21 | 19 | 38 | 21 | 20 | M3 | |
| ERZ-HPA-3200-3800-25 | 32 | 38 | 25 | 32 | Contact us | |
| ERZ-HPA-3100-3700-34 | 31 | 37 | 34 | 19 | M2 | |
| ERZ-HPA-2300-3700-25 | 23 | 37 | 24 | 20 | M1 | |
| ERZ-HPA-2300-3700-27 | 23 | 37 | 27 | 21 | M1 | |
| ERZ-HPA-2400-3600-27 | 24 | 36 | 27 | 35 | M2 | |
| ERZ-HPA-2500-3500-25 | 25 | 35 | 25 | 18 | M2 | |
| ERZ-HPA-2500-3500-25-E | 25 | 35 | 25 | 35 | M1 | |
| ERZ-HPA-3100-3500-33 | 31 | 35 | 33 | 19 | M1 | |
| ERZ-HPA-2800-3300-33 | 28 | 33 | 33 | 23 | M3 | |
| ERZ-HPA-2800-3200-32 | 28 | 32 | 32 | 20 | M1 | |
| ERZ-HPA-2000-3300-20 | 20 | 33 | 20 | 22 | M3 | |
| ERZ-HPA-2800-3100-38 | 28 | 31 | 38 | 22 | M2 | |
| ERZ-HPA-2800-3100-38-E | 28 | 31 | 38 | 39 | M2 | |
| ERZ-HPA-2400-3100-35 | 24 | 31 | 35 | 23 | M2 | |
| ERZ-HPA-2500-3100-35-E | 25 | 31 | 35 | 40 | M2 | |
| ERZ-HPA-2800-3000-30 | 28 | 30 | 30 | 20 | M2 | |
| ERZ-HPA-2600-2800-22 | 26 | 28 | 22 | 22 | M1 | |
| ERZ-HPA-2600-2800-36 | 26 | 28 | 36 | 22 | M2 | |
| ERZ-HPA-2300-2800-32 | 23 | 28 | 32 | 22 | M2 | |
| ERZ-HPA-2300-2800-21 | 23 | 28 | 21 | 17 | M1 | |
| ERZ-HPA-2100-2650-27 | 21 | 26,5 | 27 | 28 | M3 | |
| ERZ-HPA-1700-2600-25 | 17 | 26 | 25 | 22 | M3 | |
K Band Power Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-HPA-1600-3300-24 | 16 | 33 | 24 | 17 | M3 | |
| ERZ-HPA-1600-3300-24-E | 16 | 33 | 24 | 34 | M1 | |
| ERZ-HPA-1500-2700-29 | 15 | 27 | 29 | 17 | M3 | |
| ERZ-HPA-1500-2700-29-E | 15 | 27 | 29 | 34 | M1 | |
| ERZ-HPA-1600-2400-31 | 16 | 24 | 31 | 23 | M2 | |
| ERZ-HPA-1600-2400-31-E | 16 | 24 | 31 | 40 | M1 | |
| ERZ-HPA-1600-2400-29 | 16 | 24 | 29 | 22 | M3 | |
| ERZ-HPA-1600-2400-29-E | 16 | 24 | 29 | 39 | M1 | |
Ku Band Power Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-HPA-1200-1900-29 | 12 | 19 | 29 | 25 | M1 | |
| ERZ-HPA-1680-1800-33 | 16,8 | 18 | 36 | 25 | Contact us | |
| ERZ-HPA-1300-1600-38 | 13 | 16 | 38 | 24 | M2 | |
| ERZ-HPA-1200-1600-26 | 12 | 16 | 26 | 23 | M1 | |
| ERZ-HPA-1250-1550-34 | 12,5 | 15,5 | 34 | 27 | M2 | |
X Band Power Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-HPA-0900-1400-34 | 9 | 14 | 34 | 36 | M2 | |
| ERZ-HPA-0600-1000-31 | 6 | 10 | 31 | 25 | M1 | |
L-Band, C-Band Amplifiers |
f min (GHz) | f max (GHz) | Psat (dBm) | Gain (dB) | Housing | |
| ERZ-HPA-0500-2300-20 | 5 | 23 | 20 | 19 | M3 | |
| ERZ-HPA-0500-1800-32 | 5 | 18 | 32 | 24 | M1 | |
| ERZ-HPA-0100-1800-21 | 1 | 18 | 21 | 14 | M3 | |
| ERZ-HPA-0500-0600-25 | 5 | 6 | 25 | 24 | M3 | |
| ERZ-HPA-0570-0590-42 | 5,7 | 5,9 | 42 | 40 | Contact us | |
| ERZ-HPA-0440-0500-40 | 4,4 | 5 | 40 | 30 | Contact us | |
| ERZ-HPA-0200-0400-24 | 2 | 4 | 24 | 23 | M3 | |
| ERZ-HPA-0280-0330-40 | 2,8 | 3,3 | 40 | 38 | Contact us | |
Broadband LNAs |
f min (GHz) | f max (GHz) | Gain (dB) | NF (dB) | Housing | Psat (dBm) |
| ERZ-LNA-0200-4500-15-4 | 2 | 45 | 15 | 4 | M3 | 10 |
| ERZ-LNA-1800-4000-15-4 | 18 | 40 | 15 | 4 | M3 | 18 |
| ERZ-LNA-2600-4000-50-2.5 | 26 | 40 | 50 | 2.5 | M1 | 14 |
| ERZ-LNA-2600-4000-34-2.5 | 26 | 40 | 34 | 2.5 | M1 | 11 |
| ERZ-LNA-2600-4000-30-2.5 | 26 | 40 | 30 | 2.5 | M1 | 11 |
| ERZ-LNA-3600-4000-29-3.5 | 36 | 40 | 29 | 3.5 | M3 | 10 |
| ERZ-LNA-0200-3300-30-4 | 2 | 33 | 30 | 4 | M2 | 16 |
| ERZ-LNA-1800-3200-21-3 | 18 | 32 | 21 | 3 | M3 | 9 |
| ERZ-LNA-1250-3000-25-2.5 | 12,5 | 30 | 25 | 2.5 | M3 | 14 |
| ERZ-LNA-2000-3000-17-2.5 | 20 | 30 | 17 | 2.5 | M3 | 7 |
| ERZ-LNA-1700-2400-25-2.5 | 17 | 24 | 25 | 2.5 | M3 | 14 |
| ERZ-LNA-0200-1800-30-2 | 2 | 18 | 30 | 2 | M3 | 18 |
| ERZ-LNA-0200-1800-23-2.5 | 2 | 18 | 23 | 2.5 | M3 | 15 |
| ERZ-LNA-1250-1780-30-3 | 12,5 | 17,8 | 30 | 3 | Contact us | 11 |
| ERZ-LNA-0600-1700-20-2 | 6 | 17 | 20 | 2 | M3 | 17 |
| ERZ-LNA-1250-1700-33-3 | 12.5 | 17 | 33 | 3 | M3 | 14 |
| ERZ-LNA-1000-1600-15-2.5 | 10 | 16 | 15 | 2.5 | M3 | 10 |
| ERZ-LNA-0700-1400-16-2 | 7 | 14 | 16 | 2 | M3 | 10 |
| ERZ-LNA-0700-1300-26-2 | 7 | 12 | 26 | 2 | M1 | 21 |
| ERZ-LNA-0840-1020-21-1.5 | 8,4 | 10,2 | 25 | 1.5 | Contact us | 11 |
| ERZ-LNA-0300-0930-30-2 | 3 | 9,3 | 30 | 2 | M2 | 19 |
| ERZ-LNA-0300-0800-23-2 | 3 | 8 | 23 | 2 | M1 | 12 |
| ERZ-LNA-0300-0800-13-2 | 3 | 8 | 13 | 2 | M3 | 19 |
| ERZ-LNA-0100-0310-28-2 | 1 | 3,1 | 28 | 2 | M2 | 19 |
| ERZ-LNA-0125-0175-27-2 | 1,25 | 1,75 | 27 | 2 | M3 | 15 |
| ERZ-LNA-0007-0110-28-2 | 0,07 | 1,1 | 28 | 2 | M2 | 17 |
