logo M2 Global
M2 Global Technology is a premier US supplier of microwave products, serving the defense, telecommunications, and aerospace industries for over 30 years. The company's products are used in cellular communication systems, satellite up and down links, line-of-sight communications, radar countermeasures, broadcast equipment, and airframe systems.

The company has an ISO 9001 and AS9100 approved quality system. (certificate).

Download M2 Global's products catalog.

RF and Microwave Circulators and Isolators

Ferrite circulators are passive three-port devices in which an RF or microwave signal is transmitted from one port to the next port, but not to the third port. They are mainly used to protect amplifiers from reflected signals if there is a defect in the cable or antenna after the amplifier. The ports are matched inside the housing to 50 Ohm. RF isolators have one port terminated with a power resistor.

M2 Global offers a wide spectrum of coaxial, drop-in and waveguide ferrite circulators and isolators, from 380 MHz to 23.6 GHz, for broadcast, cellular communications, satcom and radar frequency bands.

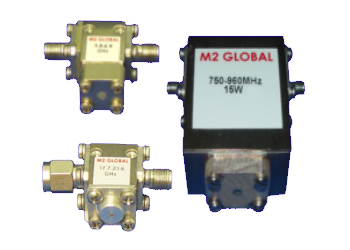

M2 Global Coaxial CirculatorsCoaxial Circulators and Isolators

  • 380 MHz to 20 GHz
  • up to 700W average power
  • up to octave bandwidth
  • connector options: N-type or SMA
  • clockwise or counter clockwise operation available
  • dual junction isolators with up to 50 dB isolation

Drop-In Circulators and Drop-In Isolators

  • 400 MHz to 22 GHz
  • up to 250 W average power
  • single circulator and high isolation dual junction isolator designs
  • extended temperature range available
  • high power low IMD isolators with 20 dB or 30 dB attenuator available

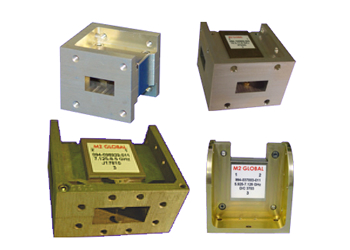

M2 Global waveguide circulatorsWaveguide Circulators and Waveguide Isolators

  • 5.8 GHz to 23.6 GHz
  • up to 1000 W average power
  • pressure sealing or RFI sealing
  • less than 0.1 dB insertion loss with some designs
  • clockwise or counter clockwise operation available
  • waveguide sizes: WR137, WR112, WR90, WR75, WR62, WR42

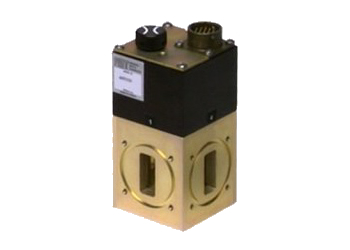

M2 Global waveguide switch Waveguide Switches

  • 3.5 GHz to 40 GHz
  • insertion loss < 0.05 dB up to 18 GHz
  • designed for reliability in outdoor environments

M2Global coaxial power dividers Coaxial Couplers and Power Dividers

  • narrow band couplers and wideband couplers
  • coaxial power dividers, 2-way, 4-way, 8-way, N-type or SMA connectors
  • frequency range 500 MHz to 26.5 GHz
  • surface finishing and tuning as required
