Maury Microwave
was founded in 1957, provided the calibration kits for the famous HP8510 and released the first commercial automated impedance tuner system in 1987.
Maury Microwave developed industry leading load pull and noise parameter systems, measurement and modelling software, adapters, attenuators, VNA test cables,
coaxial and waveguide VNA calibration kits, calibration standards and microwave power amplifiers.
For information regarding the AM3200 pulsed IV system and the software packages IVCAD, VISION, IQSTAR and Whiteboard please turn to our AMCAD website.Seminar on Device Characterization Solutions
Together with Maury, AMCAD and HiTech we offered this hands-on seminar in Munich on May 3rd, 2022. Details can be found here.You can view the recorded videos from our previous online seminar here:
Maury Insight software
Maury mmWave hybrid-active load-pull
Maury Nano5G and Anteverta MT2000 high gamma load pull
Maury mmWave Studio active load pull
Download Maury Microwave catalog of test solutions and components (pdf, 14 MB)

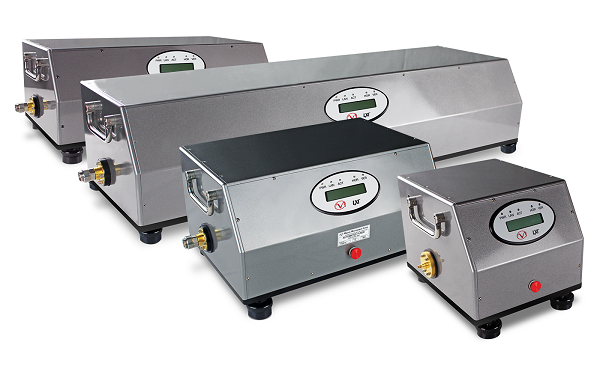

LXI™-Certified Automated Impedance Tuners
High Speed Impedance and Load-Pull Tuners
- Swept-Adaptive Characterization gives full Smith-chart coverage
- Extremely fast even with hundreds of frequency points
- Ideal for harmonic load pull, hybrid active load pull, noise figure, noise parameters
- High gamma XT-Series tuners for 225 MHz to 26.5 GHz
- MT-Series tuners for 8 GHz to 50 GHz, 8 GHz to 65 GHz and 50 GHz to 110 GHz
- NEW: NT series Nano5G Tuner, 18 GHz to 50 GHz, ideal for 5G FR2 frequencies
- MT1000 and MT2000 are the only load pull systems capable of tuning and measuring hundreds of impedance/power states per minute
- 2D and 3D analysis of measured and modeled data
- Visualization of S-parameters, IV curves, pulse shape an 3D load pull contour
Download MT tuners data sheet.
Download nano5G tuner data sheet.
Mixed-Signal Active Load Pull Systems
MT1000 and MT2000 mixed-signal active load pull systems for high speeds of up to 1000 impedance/power states per minute with no limitation on Smith chart coverage.- Single-tone CW and pulsed-CW RF signal
- DC and pulsed-DC bias
- Time-domain NVNA voltage and current waveforms and load lines
- Frequencies between 1 MHz and 40 GHz
MMW-STUDIO Characterization Software for Millimetre-Wave up to 1.1 THz
MMW-STUDIO is a software suite designed by Vertigo to work with a 4-port VNA using waveguide extender modules. It adds accurate and repeatable high-resolution power control. The software enables the direct measurement of vector corrected power at the DUT reference plane, as well as control over the power delivered to the DUT.- Measure S-parameters at user-specified power levels
- Accurate and repeatable vector-corrected 50 Ω gain compression power sweep measurements
- Arbitrary impedance control / active load pull
- Measure fundamental powers, gain and efficiency at 50 Ω and arbitrary impedances
- Calibrated measurements at DUT reference plane
Noise Receiver Modules for Fast Noise Measurements
Maury's new ultra-fast noise parameter measurement method is able to improve overall calibration and measurement time by a factor of 100X-400X. The new method has two key features that contribute to the breakthrough speed improvement:1) The tuner is characterized with one set of states (physical tuner positions) that are selected to give a reasonable impedance spread over the frequency band of interest; and 2) the noise power measurement is swept over the frequency range at each state, so that the tuner only moves to each position once.
Download application note

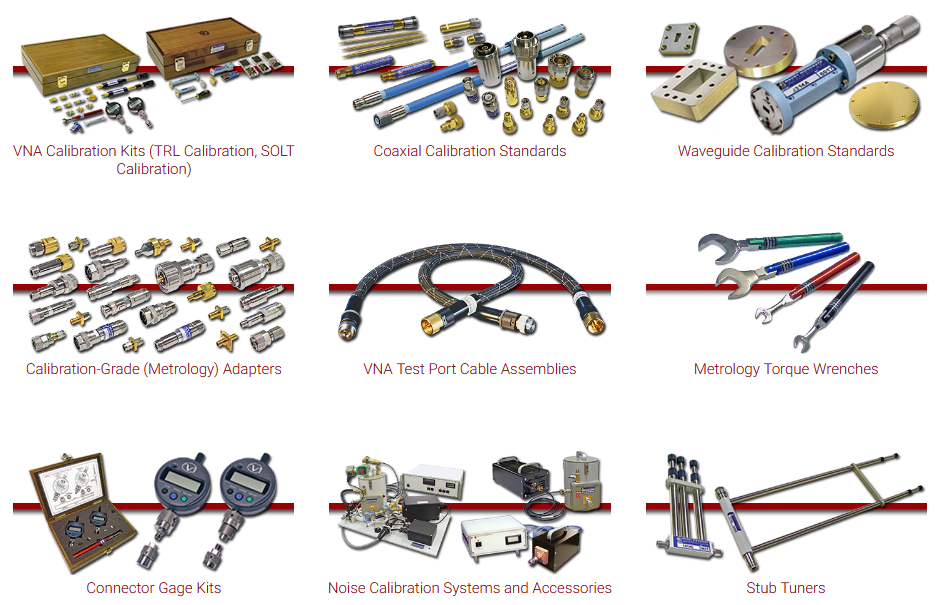

RF and Microwave Precision Calibration Solutions from Maury Microwave

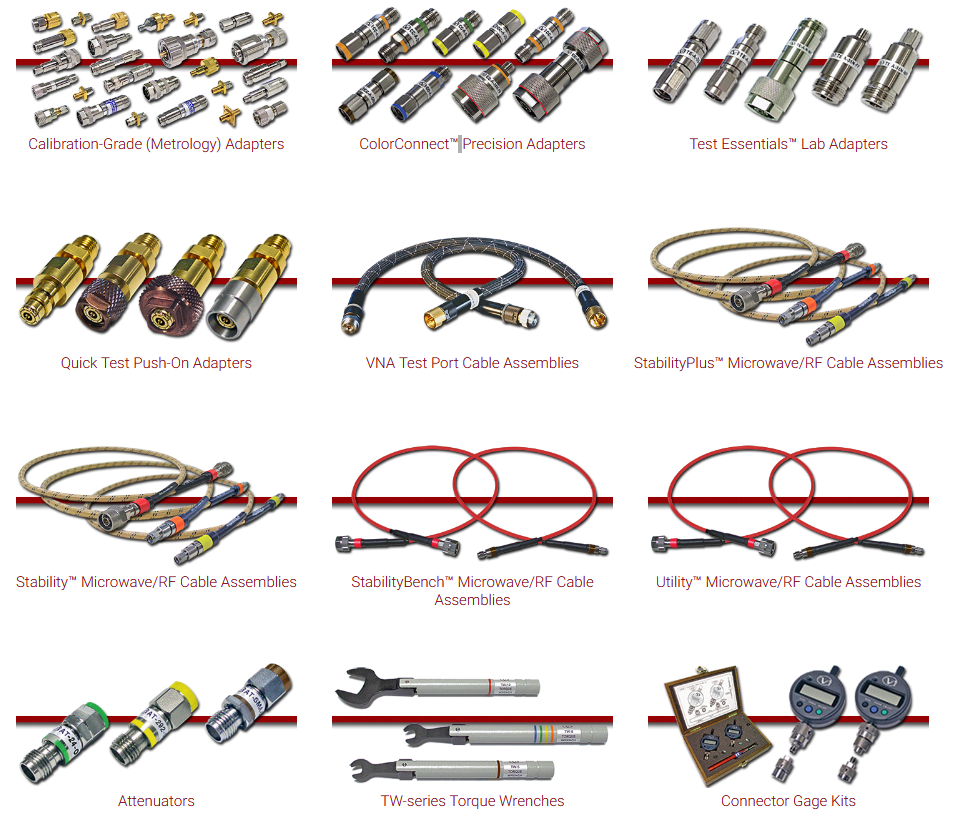

RF and Microwave Precision Adapters, Attenuators and VNA Test Cables
Maury Microwave has broadened its range of high-performance VNA test cables and updated the data sheets:- StabilityPlus armored VNA test cables
- StabilityPlus low-profile VNA test cables
- TVAC cables for thermal vacuum test chambers
- Stability VNA cables - highest phase stability with flexure

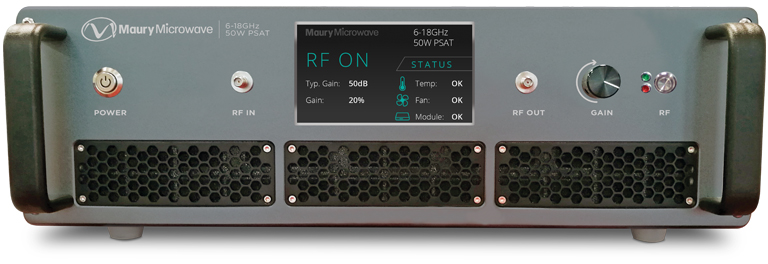

RF and Microwave Amplifiers from Maury Microwave
