Vectawave Technology of Isle of Wight have produced hundreds of EMI/EMC amplifiers which were sold under the brand names of Teseq and other well-known European companies. Now Vectawave goes to market with their own line of wideband amplifiers which are based on reliable and cost-efficient GaAs transistor technology and proven designs. Prices are very competitive compared to Amplifier Research and others.
New EMI/EMC Power Amplifiers

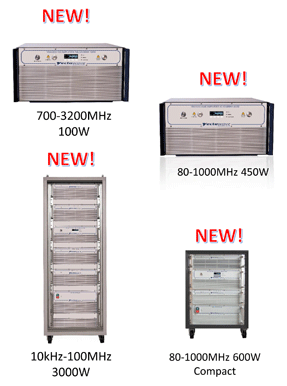

VBA3200-450, 450 W min., 700 MHz to 3.2 GHz, Datasheet VBA3200-450Vectawave introduced 4 new RF power amplifiers at EMV 2018:
- VBA3200-100, 100 W min., 700 MHz to 3.2 GHz, data sheet VBA3200-100
- VBA100-3000, 3000 W min., 10 kHz to 100 MHz, data sheet VBA100-3000
- VBA1000-450, 450 W min., 80 MHz to 1 GHz, data sheet VBA 1000-450
- VBA1000-600c, 600 W min., 80 MHz to 1 GHz, data sheet VBA1000-600c
EMI and EMC Amplifiers
10 kHz - 100 MHz amplifiers 30 W - 3000 W150 kHz - 230 MHz amplifiers 22 W, 35 W, 80 W
10 kHz - 250 MHz amplifiers 80 W - 2500 W
10 kHz - 400 MHz amplifiers 30 W - 260 W
10 kHz - 1 GHz amplifiers 18 W, 35 W, 45 W, 70 W
80 MHz - 1 GHz amplifiers 30 W - 1000 W
1 GHz - 2 GHz amplifiers 50 W, 100 W, pulsed 2 kW - 8 kW
700 MHz - 4.2 GHz amplifiers 18 W - 250W, 450 W bei 3,2 GHz
600 MHz - 6 GHz amplifiers 15 W - 200 W
2 GHz - 6 GHz amplifiers 15 W - 200 W
700 MHz - 2.7 GHz Klasse AB amplifiers 100 W, 200 W
L-Band (1 kW) and S-Band (500 W) amplifiers
Special and Custom RF Amplifiers
Vectawave develops custom amplifiers for particle accelerators, medical and defense applications. Download brochure custom amplifiers
Vectawave offers linear amplifier modules for frequencies between 9kHz and 6GHz in class A or AB designs with a variety of cooling and power supply options.
Download brochure linear amplifier modules

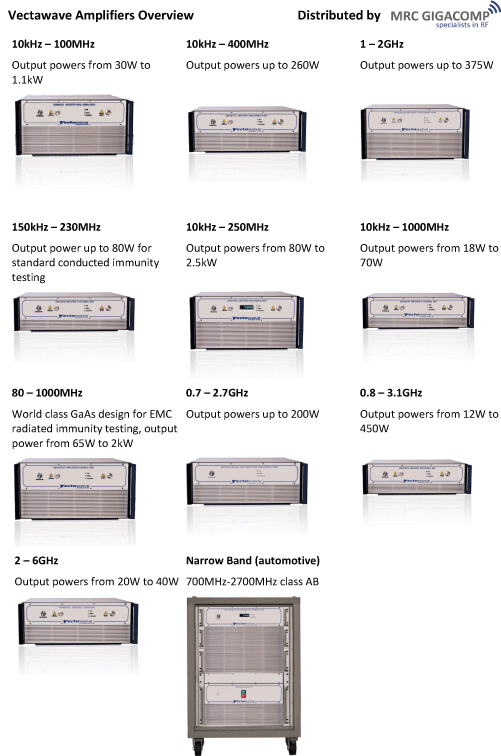

Click on the image below to download the Vectawave amplifier overview pdf.
