Arralis is an Irish company specialised in MMICs, packaged modules and integrated front-ends with a focus on Ka-band, E-band and W-band for satellite communications, car radar, defense and body scanner applications.

Ka-Band MMICs

The Ka-band MMIC chipset comprises all of the circuits required to build a K band satellite and ground front end that will connect easily with high power amplifiers and antennas. It consists of:

• GaAs PHEMT MMIC VCO with Integrated Sub-harmonic Mixer, 23 - 25 GHz
• GaAs PHEMT MMIC VCO with Integrated Frequency Divider, 23 - 25 GHz
• GaAs PHEMT MMIC Frequency Divider <16 dB Conversion Loss, 23 - 25 GHz
• GaAs PHEMT MMIC LNA, 20dB Gain, 17 - 31 GHz
• GaAs PHEMT MMIC Power Amplifier, 22 dBm saturated Output Power, 17 - 21 GHz
• GaAs PHEMT MMIC Power Amplifier, 20 dBm saturated Output Power, 27 - 31 GHz
• GaAs Diode MMIC x2 Multiplier, 11 dB Conversion Loss, 17 - 21 GHz
• GaAs PHEMT MMIC Upconverter Core Chip, 10 dB Conversion Gain, 17 - 21 GHz
• GaAs PHEMT MMIC Downconverter Core Chip, 6 dB Conversion Gain, 17 - 21 GHz
• GaAs PHEMT MMIC Phase Shifter, 360° Phase Variation, 17 - 21 GHz

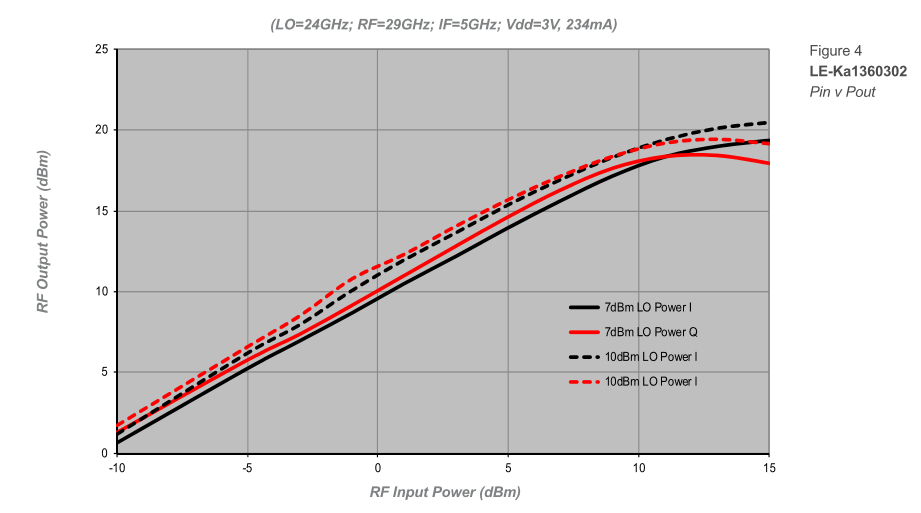

• GaAs PHEMT MMIC Upconverter Core Chip, 10 dB Conversion Gain, 27 - 31 GHz
• GaAs Diode MMIC Phase Shifter, 360° Phase Variation, 25 - 32 GHz
• GaAs PHEMT MMIC Phase Shifter, 360° Phase Variation, 27 - 32 GHz
• GaAs Diode MMIC SPDT Switch, 18 - 29 GHz
• GaN on SiC MMIC 10 W High Power Amplifier, 17 - 20 GHz

E-Band MMICs

The Arralis E band chipset is primarily aimed at the automotive radar applications with wide frequency ranges from 76 GHz to 81 GHz.

• GaAs PHEMT MMIC LNA, 20 dB Gain, 4.5 dB Noise Figure, 75 - 90 GHz
• GaAs PHEMT MMIC LNA, 25 dB Gain, 3 dB Noise Figure, 77 - 82 GHz
• Dual Channel GaAs PHEMT MMIC LNA, 2 x 25 dB Gain, 3 dB Noise Figure, 77 - 82 GHz
• GaAs Diode MMIC I/Q Mixer, 9 dB Conversion Loss, 76 - 81 GHz
• GaAs Diode MMIC DDBM I/Q Mixer, 9 dB Conversion Loss, 76 - 81 GHz
• GaAs Diode MMIC x4 Multiplier, 5 dB Conversion Loss, 72 - 88 GHz
• GaAs Diode MMIC x2 Multiplier, 14 dB Conversion Loss, 60 - 85 GHz
• GaAs Diode MMIC single balanced Mixer, 4 dB Conversion Loss, 76 - 81 GHz
• GaAs Diode MMIC Ring Mixer, 8.5 dB Conversion Loss, 76 - 81 GHz
• GaAs Diode MMIC SP8T Switch, 25 dB Isolation, 76 - 81 GHz
• GaAs Diode MMIC SP4T Switch, 25 dB Isolation, 76 - 81 GHz
• GaAs Diode MMIC SPDT Switch, 15 dB Isolation, 76 - 81 GHz

W-Band MMICs

The Tucana MMIC and module range is the leading edge of 94GHz radar and body scanner chipsets. The complete MMIC range includes Power Amplifiers, Low Noise Amplifiers, Multipliers, Switches, Mixers and Medium Power Amplifiers. A number of devices are available as a standard module for ease of development.

• GaAs PHEMT MMIC Low Noise Amplifier, 25 dB Gain, 5 dB Noise Figure, 92 - 96 GHz
• GaAs PHEMT MMIC Medium Power Amplifier, 13 dB Gain, 10 dBm P3dB, 92 - 96 GHz
• GaAs PHEMT MMIC Medium Power Amplifier, 20 dB Gain, 16 dBm P3dB, 92 - 96 GHz
• GaAs PHEMT MMIC Power Amplifier, 20 dB Gain, 18 dBm Psat, 92 - 96 GHz
• GaAs PHEMT MMIC Power Amplifier, 13 dB Gain, 18 dBm Psat, 89 -93 GHz
• GaAs PHEMT MMIC Downconverter Mixer, 4 dB Conversion Loss, 92 - 96 GHz
• GaAs PHEMT MMIC x4 or x8 Multiplier, 86 - 92 GHz
• GaAs Diode MMIC Image Cancelling Mixer, 92 - 96 GHz
• GaAs Diode MMIC SPDT Switch, 30 dB Isolation, 90 -100 GHz
• GaAs Diode MMIC SP3T Switch, 6 dB Insertion Loss, 90 -110 GHz
• GaAs Diode MMIC SPST Switch, 2 dB Insertion Loss, 90 -100 GHz

W-Band Subsystems

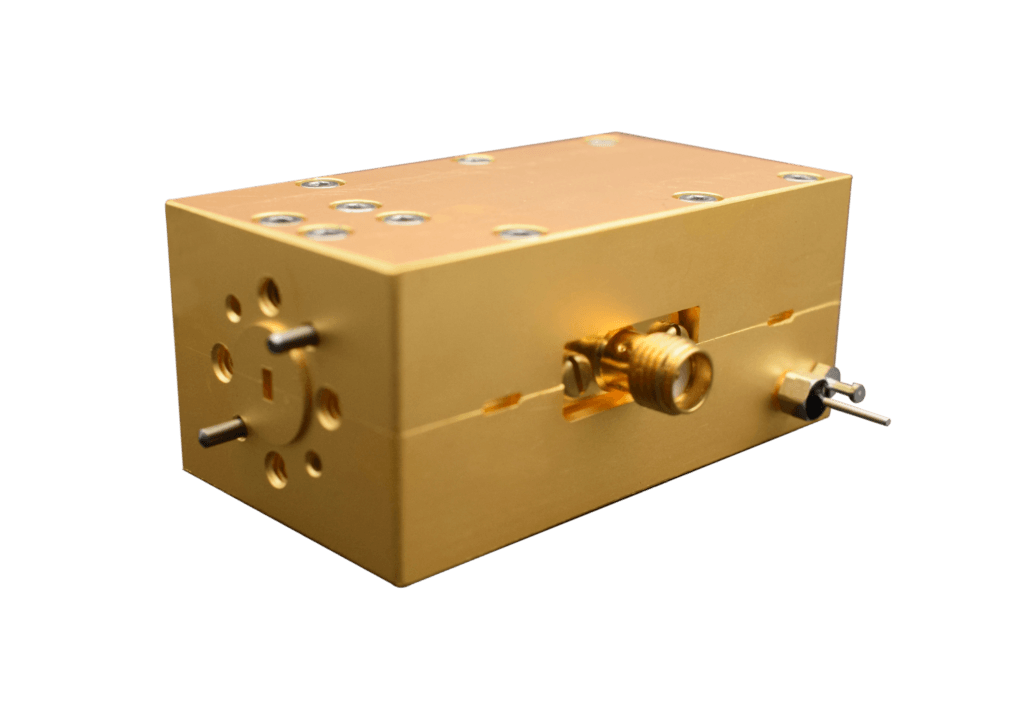

The Arralis Tucana range of modules consist of individual function modules (HPA, MPA, LNA, x4 frequency multiplier) as well as 92 - 96 GHz transmit and receive modules with convenient WR10 antenna connections and SMA X-band connections for signal inputs and outputs.
