Electronics & Innovation (E&I) manufactures ENI's ultrasonics, HF and VHF power amplifiers, phased array amplifiers, modules and impedance transformers.
They are characterized by large bandwidth and high linearity and proven robustness with all loads.
Applications:
- Medical ultrasonics
- Non-destructive testing
- HF research (e.g. linear accelerators)
- EMI tests
- HF and VHF radios and transmitters
E&I Power Amplifiers and equivalent ENI Amplifiers
E&I's range of HF and VHF amplifiers is characterized by:- High linearity class A amplifier designs up to 500W, class AB up to 2kW
- New class D amplifier family, highly efficient, compact, low weight!
- High gain, typically 50dB to 60dB
- Large bandwidths
- Stable with all loads (open, short, capacitive, inductive,...)
- CE certifiied and RoHS compliant
- Frequency range 10kHz to 1GHz
| RF Power | Frequency Range | Power Gain | E&I Amplifier | ENI equivalent Amplifier |
| 2000W | 20kHz - 1MHz | 58dB | 1240L | EGR 1600B, EGR 3200B |
| 1000W | 20kHz - 400kHz | 60dB | 1000S04 | new product, class D |
| 1000W | 10kHz - 2MHz | 55dB | 1140LA | ENI 1140LA, EGR 8008 |
| 1000W | 300kHz - 35MHz | 60dB | A1000 | ENI A1000 |
| 500W | 50kHz - 12MHz | 60dB | 2500L | |
| 500W | 300kHz - 35 MHz | 60dB | A500 | ENI A500 |
| 500W | 20kHz - 600kHz | 57dB | 500S06 | new product, class D |
| 400W | 10kHz - 12MHz | 55dB | 2400L | |
| 400W | 10kHz - 5MHz | 55dB | 1040L | ENI 1040L, ENI AP-4008 |
| 300W | 300kHz - 35MHz | 55dB | A300 | ENI A300 |
| 200W | 10kHz - 12MHz | 53dB | 2200L | |
| 200W | 10kHz - 5MHz | 53dB | 1020L | |
| 150W | 300kHz - 35MHz | 55dB | A150 | ENI A150 |
| 100W | 250kHz - 150MHz | 50dB | 3100LA | ENI 3100LA |
| 100W | 10kHz - 12MHz | 50dB | 2100L | ENI 2100L |
| 75W | 300kHz - 35MHz | 50dB | A075 | |
| 50W | 250kHz - 150MHz | 47dB | 350L | ENI 350L |
| 40W | 10kHz - 12MHz | 50dB | 240L | ENI 240L |
| 25W | 250kHz - 150MHz | 50dB | 325LA | ENI 325LA |
| 20W | 100kHz - 2MHz | 43dB | UltraX-20 | |
| 10W | 100kHz - 2MHz | 40dB | UltraX-10 | |
| 10W | 150kHz - 300MHz | 40dB | 411LA | ENI 411LA |
| 10W | 15kHz - 12MHz | 40dB | 210L | |
| 3W | 150kHz - 300MHz | 37dB | 403LA | ENI 403LA |
| 1W | 800kHz - 1GHz | 40dB | 601L | ENI 601L, ENI 603L |
Amplifier Systems for Ultrasonic Phased Arrays
Electronics
and Innovation's extensive amplifier research has led to the
development of amplifier systems with controlled delay and phase for
each amplifier module for linear or curved arrays of ultrasonic
sensors. These highly linear phased array amplifiers are available
in class A or AB designs with 2 to 61 channels, RF powers up to 100W
per channel and for frequencies from 250kHz to 150MHz. Please call us to get more details
HF and VHF Amplifier Modules

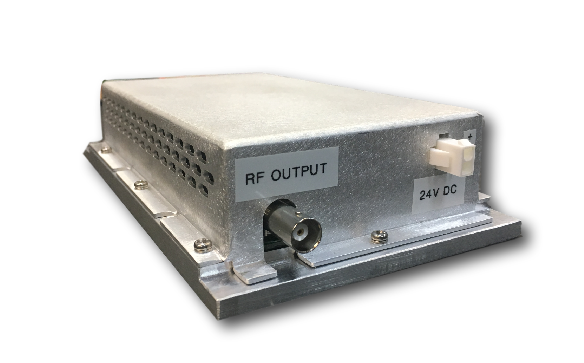

E&I is renowned for its highly inear, robust and reliable HF amplifiers. That technology is now available as modules, pallets and subsystems. They are available in various power classes from 1W to 400W for frequencies from 10kHz to 35MHz, e.g. for ultrasonic applications or ISM band applications at 13.5MHz and 27MHz. Other combinations of power and bandwidth are available upon request.
| RF Power | Frequency Range | Power Gain | E&I Amplifier Module |
| 400W | 10kHz - 5MHz | 15dB | M-1040 |
| 200W | 10kHz - 5MHz | 15dB | M-1020 |
| 200W | 10kHz - 12MHz | 20dB | M-2200 |
| 150W | 500kHz - 35MHz | 20dB | MA-150 |
| 100W | 10kHz - 12MHz | 20dB | M-2100 |
| 75W | 500kHz - 35 MHz | 20dB | MA-075 |
| 40W | 10kHz - 12MHz | 20dB | M-0240 |
| 15W | 20kHz - 30MHz | 40dB | 15M30 |
Broadband HF and VHF Power Indicators

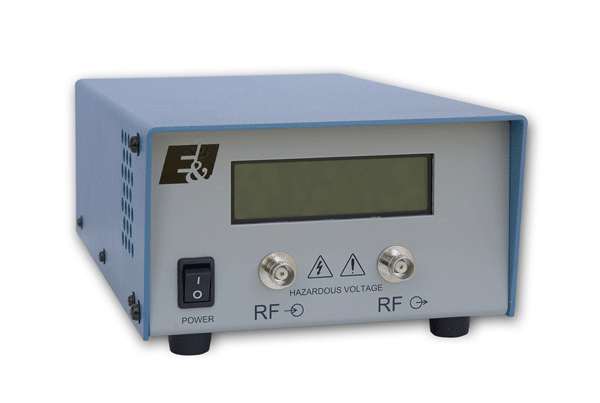

These power indicators measure output power and reflected power. Four different types cover 10kHz to 150MHz, up to 2000W.Brochure HF power indicators
Impedance Matching Transformers

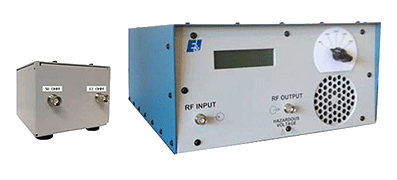

Impedance Matching Transformers with Fixed Transformation
E&I has developed impedance transformers with 50 Ohm input impedance and output impedances between 3 Ohm and 200 Ohm for out powers up to 150W and frequency ranges from 10kHz to 10MHz.| RF Power | Frequency Range | E&I Transformer | Output Impedance |
| 150W | 10kHz - 5MHz | JT-200 | 200 Ohm |
| 150W | 10kHz - 5MHz | JT-100 | 100 Ohm |
| 150W | 10kHz - 10MHz | JT-25 | 25 Ohm |
| 150W | 10kHz - 10MHz | JT-12 | 12 Ohm |
| 150W | 10kHz - 10MHz | JT-6 | 5,5 Ohm |
| 150W | 10kHz - 5MHz | JT-3 | 3,1 Ohm |
Impedance Transformers with switchable Output Impedance
For RF powers up to 1 Kilowatt E&I has developed Locked-On impedance transformers with 50 Ohm input impedance and hot switchable output impedances.| Power | Frequency Range | E&I Transformer | Output Impedances |
| 1000W | 500kHz - 5MHz | HI-Z-800 | 50 Ohm, 100 Ohm, 200 Ohm, 400 Ohm, 800 Ohm |
| 1000W | 500kHz - 5MHz | LO-Z-6 | 6 Ohm, 12 Ohm, 25 Ohm, 50 Ohm, 100 Ohm |
With a capacitive load (e.g. ultrasonics transducers, piezoelectric crystals) there will be mismatch losses, which are explained in this application note.
