Telit - IoT M2M modules from 2G up to 5G
The pin compatibility of the modules of different radio standards (2G, 3G, 4G, Bluetooth and WLAN) results in particular advantages for the customer, which significantly reduces the development effort.
Telit cellular modules
Cellular modules from Telit
supports all mobile radio standards used worldwide. The portfolio starts from
simple GSM / GPRS modules up to highspeed 5G. Also for products that
are to be used outside Europe Telit offers the right module.
Telit devides the modules in different product families:
- xE310 family
- xE910
family
- xL865 family
- MiniPCIe datacards
- Mobile Broadband Datacards
New: Telit xE310 family
- Extra small formfactor 15 x 18 x 2.2 mm
- Quand Band GSM/GPRS + Bluetooth 4.0 + GNSS
- LTE Cat. M1 / NB2
- GNSS: A-GPS, GLONASS Galileo, Beidou
- Variants with worldwide frequency coverage
|
Request information
|
xE310 family modules
Series |
Technology |
Datasheet |
| 4G LTE |
|
|

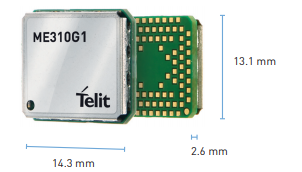

ME310 |
LTE Cat M1/NB2 |
ME310 |
ME310G1-W2 |
LTE Cat M1/NB2 |
ME310G1-W2 |
NE310H2-W1 |
LTE Cat NB2 |
NE310H2 |
| 2G |
|
|
GE310-GNSS |
GSM|GPRS, GNSS, Bluetooth |
GE310-GNSS |
|

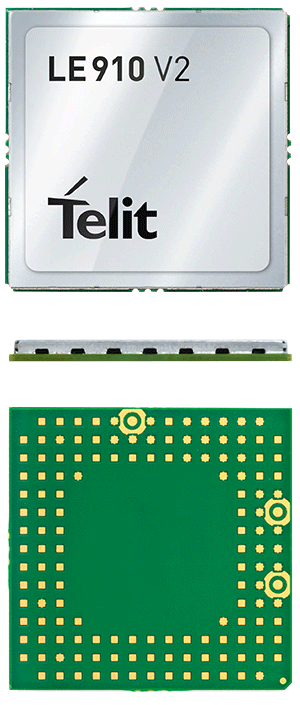

Telit xE910 family
- Uniform formfactor
- Fully pin compatibility
- Size: 28.2 x 28.2 x 2.2 mm
- For IOT / M2M applicationen
- 2G, 3G, 4G support
- Cat. M1 and NB-IoT (NB1 and NB2) support
- Uniform AT commands
- GNSS support (optional)
- Surface Mounting: LGA
- Temperature: -40°C bis +85°C
- Integrated SIM (optional)
|
Request information
|
xE910 family modules
|
Telit xL865 family
- Uniform formfactor
- Fully pin compatibility
- Size 24.4 x 24.4 x 2.6 mm
- For IOT / M2M Applications -
Low Cost
- 2G, 3G and LTE Cat. M1 und NB-IoT support
- Uniform AT commands
- Surface mounting: QFN (2G modules also as LCC variant available)
- Temperature: -40°C bis +85°C
- Integrated SIM (optional)
|
Request information
|
Module der xL865 Familie
Serie |
Technologie |
Datenblatt |
| 4G LTE |
|
|
ML865G1 |
LTE Cat M1/NB2 | GSM/GPRS fallback, GNSS (optional) | OneEdge™ |
ML865G1 |
ML865C1 |
LTE Cat M1/NB1 | GSM/GPRS fallback, GNSS (optional) | OneEdge™ |
ML865C1 |
NL865B1 |
LTE Cat NB1 |
NL865B1 |
NL865H2-W1 |
LTE Cat NB2 |
NL865H2-W1 |
| 3G UMTS/HSPA |
|
|

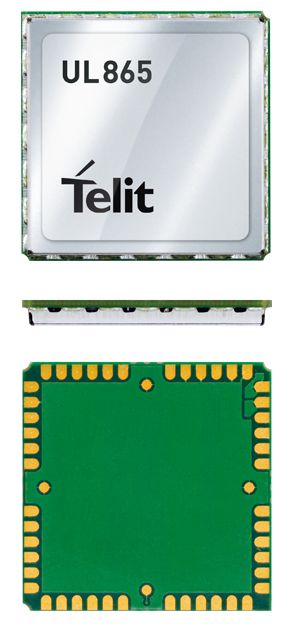

UL865 |
UMTS /HSPA |
UL865 |
| 2G GSM/GPRS |
|
|
Gl865 V3.1 |
GSM / GPRS |
GL865-QUAD/DUAL V3.1 |
GL865 V4 |
GSM /GPRS |
GL865-QUAD V4 |
GL865 V3 |
GSM /GPRS |
GL865-QUAD V3 |
|

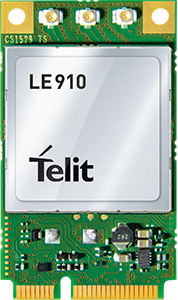

Telit MiniPCIe datacards
- Standard miniPCIe formfactor
- Based on xE910 family modules
- Perfect for applications like PDAs, POS terminals, terminals,
gateway
- 4G LTE and IoT LTE Cat.M / NB-IoT support
- Uniform AT commands
- GNSS support (optional)
- Temperature: -40°C bis +85°C
- Python script interpreter
- OTA (Over-The-Air) update
- Rx Diversity & MIMO
|
Request information |
MiniPCIe datacard modules
Series |
Description |
Datasheet |
|
LE910 Cat 1 miniPCIe |
LTE Cat.1
Europe, North America, Australia |
Datasheet |
|
|
|
|
LE910Cx miniPCIe |
LTE Cat.1 and LTE Cat.4
Europe, North America, Australia |
Datasheet |
|
|
|
|
LE910 V2 miniPCIe |
LTE Cat.1 and LTE Cat.4
Europe, North America, Australia |
Datasheet |
|
|
|
|
ME910C1 miniPCIe |
LTE Cat.M1 and NB-IoT
Worldwide variants available |
Datasheet |

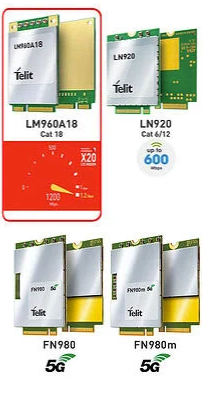

Telit mobile broadband datacards
- Standard miniPCIe und M.2 NGFF formfactor
- Ultra highspeed LTE and 5G
- MiMo
- Worldwide variants
- GNSS Support
- Temperature: -40°C bis +85°C
|
Request information |
LTE and 5G datacards
Series |
Description |
Datasheet |
|
LN920 |
LTE Cat.12 or LTE Cat.6
M.2 NGFF formfactor
Qualcomm Snapdragon X12+ LTE modem |
Datasheet |
|
|
|
|
FN980/FN980m |
Support of SA and NSA operation
4G/5G Rel. 15 generation
3G HSPA Rel.8 fallback |
Request datasheet |
|
|
|
|
LM960A18 |
Support of 4×4 MIMO-LTE Cat.18
Qualcomm Snapdragon X20 LTE modem
data rates up to 1.2 Gbps download and 150 Mbps upload |
Request datasheet |
|
