Teltonika RUT240
RUT240 is a compact, cost-effective and powerful industrial LTE router for professional applications.
This router delivers high performance for mission-critical cellular communication. Equipped with an external SIM holder and signal strength status LEDs,
it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
DOWNLOADS
Request information
RUT240 Features
| MOBILE |
|
| Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list (optional) |
Operator black/white list |
| Multiple PDN (optional) |
Possibility to use different PDNs for multiple network access and services |
| Band management |
Band lock, Used band status display |
| WIRELESS |
|
| Wireless mode |
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| WiFi |
WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter |
| WiFi security |
WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation |
| ETHERNET |
|
| WAN |
1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN |
1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| SECURITY |
|
| Authentication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| VPN |
OpenVPN - IPsec - GRE - PPTP - L2TP - Stunnel - SSTP |
| MONITORING and MANAGEMENT |
|
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
| Protocolls |
FOTA - SSH - SMS - TR-069 - MQTT - SNMP - JSON-RPC - MODBUS - RMS |
| PHYSICAL SPECIFICATION |
|
| Dimensions |
83 mm x 74 mm x 25 mm (H x W x D) |
| Operating temperature |
-40 °C to 75 °C |
| Casing material |
Aluminum housing, plastic panels |
| REGULATORY and TYPE APPROVALS |
|
| Regulatory |
CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance |
| Operator |
Verizon, ATT |

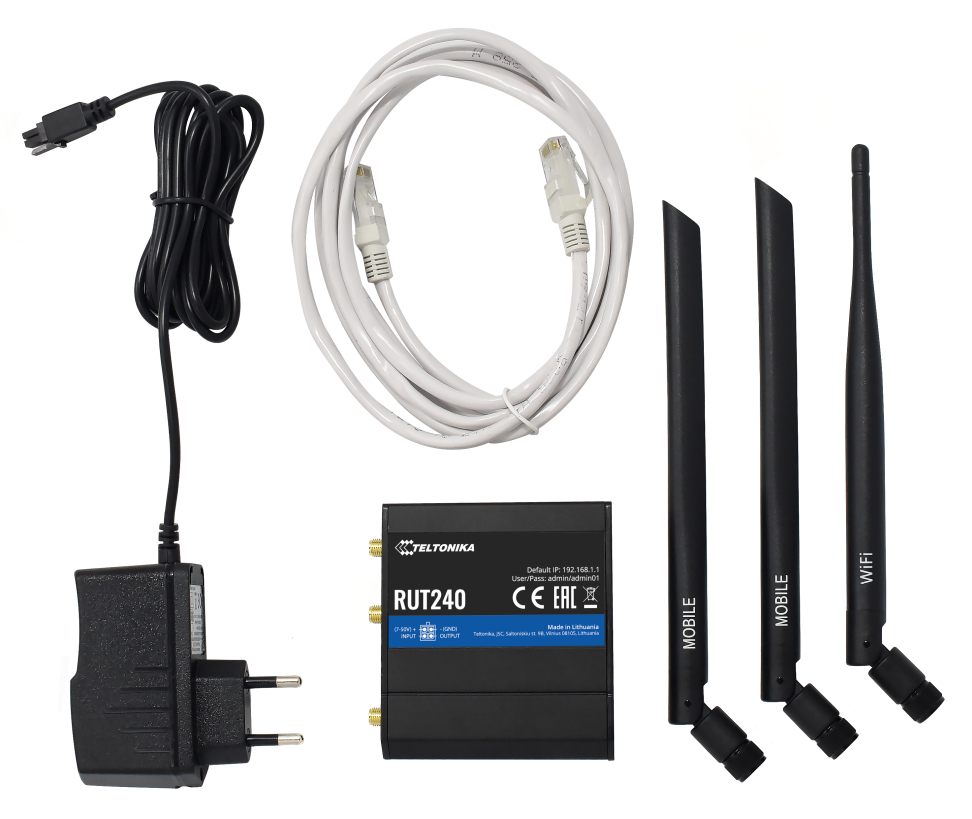

| Delivery package |
|
| Delivery package |
|
