Teltonika RUT955
RUT955 is a highly reliable and secure LTE router for professional applications. This router delivers high performance, mission-critical cellular communication. RUT950 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
DOWNLOADS
Request information
RUT955 Features
| MOBILE |
|
| Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| SIM switch |
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list (optional) |
Operator black/white list |
| Multiple PDN (optional) |
Possibility to use different PDNs for multiple network access and services |
| Band management |
Band lock, Used band status display |
| WIRELESS |
|
| Wireless mode |
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| WiFi |
WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter |
| WiFi security |
WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation |
| ETHERNET |
|
| WAN |
1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN |
3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| INTERFACES |
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| SERIAL |
RS232 / RS485 |
| INPUTS |
1 x digital input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4 pin power connector) |
| OUTPUTS |
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector) |
| USB |
USB 2.0 |
| SD CARD |
Mirco SD up to 32 GB |
| MODBUS |
Over RS232 or RS485 |
| SECURITY |
|
| Authentication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| VPN |
OpenVPN - IPsec - GRE - PPTP - L2TP - Stunnel - SSTP |
| MONITORING & MANAGEMENT |
|
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
| Protocolls |
FOTA - SSH - SMS - TR-069 - MQTT - SNMP - JSON-RPC - MODBUS - RMS |
| PHYSICAL SPECIFICATION |
|
| Dimensions |
83 mm x 74 mm x 25 mm (H x W x D) |
| Operating temperature |
-40 °C to 75 °C |
| Casing material |
Aluminum housing, plastic panels |
| REGULATORY & TYPE APPROVALS |
|
| Regulatory |
CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance |
| Operator |
Verizon, AT&T |

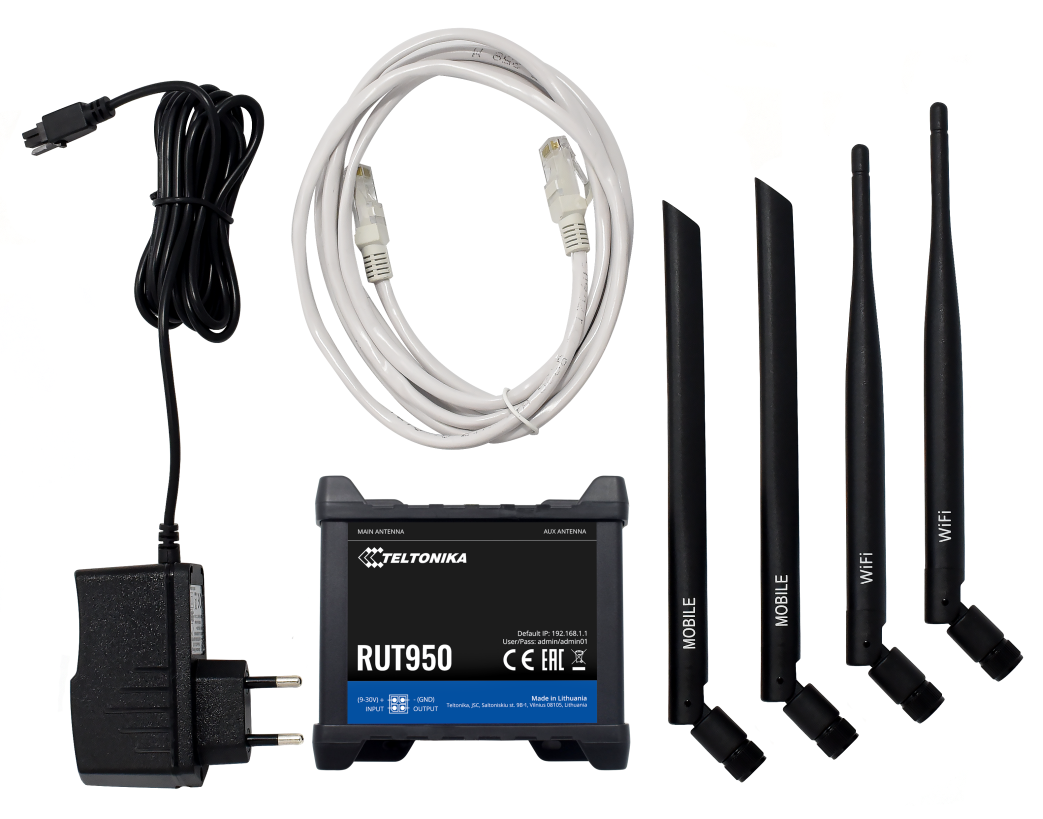

| Delivery package |
|
| Delivery package |
|
