Times Microwave Systems
is one of the famous brands in RF and microwave cables, connectors, cable assemblies and assembly tools. The main markets are
  • Telecom
  • Aerospace and Defense
  • Railways
  • Physics Research
Times Microwave is the inventor of LMR® cables.

Microwave Test Cables

Download Times Clarity and Silverline brochure

Clarity low-cost Microwave Test Cables

  • variants up to 18 GHz, 26.5 GHz, 40 GHz, 50 GHz, 70 GHz and 110 GHz
  • short-term availability
  • phase and amplitude stability under flexure

SilverLine VNA Measurement Cables

Variants for different use cases:
  • SilverLine-SF (Super Flex)
  • SilverLine-LL (Low Loss)
  • SilverLine-TT (Temp Track)
  • SiverLine-XV (Extra Flex)
  • SilverLine-75 (75 Ohm)
  • SilverLine-DAS (Low PIM)
  • SilverLine-LP (Low PIM)
  • SilverLine-LPA (Low PIM Adapters)
  • SilverLine-TG (TuffGrip)
  • SilverLine-VNA (26.5GHz, 40GHz, 50GHz, 67GHz, 110GHz)

Maxgain ultra-low-loss Microwave Cables Datasheet

  • variants up to 18GHz, 40GHz, 50GHz
  • insertion loss 0.66dB/m at 18GHz
  • enhanced temperature range -65°C to 150°C

HeliFoil ultra-stable Test Cables Datasheet

  • low insertion loss up to 18GHz
  • ultra-stable insertion loss and phase under bending
  • excellent phase stability over temperature
  • extremely flexible, small bending radius
  • superior shielding effectiveness (>100dB)

Cable Assemblies

With partners in the EU and China we offer high-precision and low-cost cable assemblies with short lead time. Most cables are available in flame retardant (UL certified) versions, watertight, ultra flexible and as low-PIM versions.Times Microwave Silverline
Download Times Microwave commercial cables catalogue (pdf, 7.2MB)

Certifications and Approvals

Times Microwave has the following certifications and approvals for certain products:
  • EN 61034-2 (low smoke density)
  • IEC 60332-1-2 (low flammability)
  • IEC 60332-3-24 (vertical flame spread)
  • NF X 70-100-1 / -2 (analysis of gaseous effluents during fire)

Times Microwave Cable Types






LMR   ✓    Flexible Low Loss
LMR BUNDLED CABLE   ✓    LMR Bundled Cable for Multiple Run Applications
LIGHT WEIGHT LMR-LW   ✓    Light Weight Flexible Low Loss and low cost!
LMR-LLPX ✓      Fire Retardant 'Plenum'
LMR-ULTRAFLEX ✓  ✓    Repeated Flexing
LMR-75 ✓  ✓    75 Ohm Versions
LMR-SW ✓  ✓    Low PIM - Seamless Wall
SPP ✓  ✓    Low PIM - Plenum - Corrugated
SPO   ✓    Low PIM - Outdoor - Corrugated
SPF ✓    ✓  Low PIM - Corrugated - Fire Retardant 'Riser'
T-RAD ✓  ✓    Low Cost Radiating Cable
NU-TRAC ✓  ✓    Triaxial Radiating Cable
TCOM ✓  ✓  ✓  Low PIM, Low Loss and Flexible - for Demanding Environments
FBT ✓  ✓  ✓  Low Loss High Power
SILICONE TAPE WEATHERPROOFING ✓  ✓    Silicone Tape Weatherproofing Kit
M17 (MIL-C-17) ✓  ✓  ✓  General Purpose - Rugged Environments
LLSB ✓  ✓  ✓  Low Loss Low Smoke Flame Retardent - Rugged Environments
SF ✓  ✓  ✓  M17s with Lower Loss & Superior Shielding
SFT ✓  ✓  ✓  Low Loss SF versions
TFLEX ✓  ✓  ✓  Flexible Alternative to Semirigid
TFT ✓      Flexible Alternative to Semi-Flex and RG cables - Plenum Rated and Low PIM
TFT-LF ✓      Flexible low cost Alternative to Semi-Flex and RG cables - Plenum Rated and Low PIM
T-LNC Low Noise Cable Reduces Mechanically Induced Electrical Noise
Coppersol CL ✓    ✓  Low Loss Semirigid Cable
SHIPBOARD ✓  ✓  ✓  Shipboard Applications
HIGH POWER ✓  ✓  ✓  High Power Applications
FIELD DEPLOYABLE   ✓    Field Deployable for Mobile Broadcast and Emergency Cell Sites
MILITARY TACTICAL   ✓    Portable/Mobile for Rugged Environments

Overview Times Microwave 50Ohm LMR Cable Sizes

Part no. compatible with diameter weight IL at  450MHz IL at 2GHz IL at 5.8GHz available Times connectors
LMR-100A RG-316, RG-174 2,79mm 14g/m 51,9dB/100m 115,5dB/100m 210dB/100m SMA, TNC
LMR-195 RG-58, RG-142 4,95mm 30g/m 25,5dB/100m 55,4dB/100m 98,1dB/100m SMA, TNC, N
LMR-200   4,95mm 30g/m 22,8dB/100m 46,6dB/100m 86,5dB/100m BNC, Mini-UHF, N, SMA, TNC
LMR-240   6,1mm 50g/m 17,3dB/100m 37,7dB/100m 66,8dB/100m BNC, Mini-UHF, N, SMA, TNC, F, QMA, 7/16, 2,3mm
LMR-300   7,62mm 80g/m 13,8dB/100m 30,3dB/100m 54,2dB/100m SMA, TNC, N
LMR-400 RG-8/9913 10,29mm 100g/m 8,9db/100m 19,6dB/100m 35,5dB/100m BNC, Mini-UHF, UHF, N, HN, TNC, QDS, 7/16
LMR-500   12,7mm 140g/m 7,1db/100m 15,9dB/100m 29,1dB/100m UHF, N,  TNC
LMR-600   14,99mm 200g/m 5,6db/100m 12,8dB/100m 23,8dB/100m UHF, N,  TNC, QDS, LC, HN, 7/16, 7/8
LMR-900   22,10mm 400g/m 3,8db/100m 8,6dB/100m 16,0dB/100m N,  7/16, 7/8
LMR-1200   30,48mm 670g/m 2,8db/100m 6,5dB/100m   N,  7/16, 7/8
LMR-1700   42,42mm 1100g/m 2,1dB/100m 4,9dB/100m   N, 7/16

Times Microwave Leaky Feeder Cables

Times Microwave also offers leaky feeder cables in two versions: T-RAD-600 and T-RAD-900. Available for all cables are connectors, lightning protection components, and tools for cutting, stripping and crimping.

Phase Stable and Temperature Stable RF Cables

For phase critical applications Times Microwave offers two different solutions:

Phase Stability during Flexure

If phase stability during flexure is of concern, the best Times Microwave cable is Silverline-VNA, which exhibits excellent stability of amplitude, phase and VSWR with repeated flexure.

Phase Stability vs. Temperature

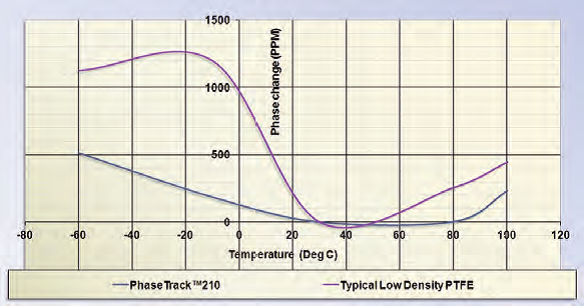

For highest stability of phase vs. temperature Times Microwave developped its PhaseTrack® cables. Using a special TF4™ dielectric they do not show the typical "PTFE-knee" in the temperature behaviour, see graph below.
Read the article Innovations In Phase Stable Coaxial Cable Design, published in Microwave Product Digest
Brochure PhaseTrack®
 Times Microwave Phase Track TF4

High Temperature and Cryogenic RF Cable

For RF applications with extemely high temperature stability requirements Times Microwave developped SiO2 cables, which have a silicon dioxide dielectric, oxygen free copper conductors and stainless steel jackets. Temperature range: -273°C to 1000°C (0 Kelvin to 1273 Kelvin). Brochure SiO2 cables

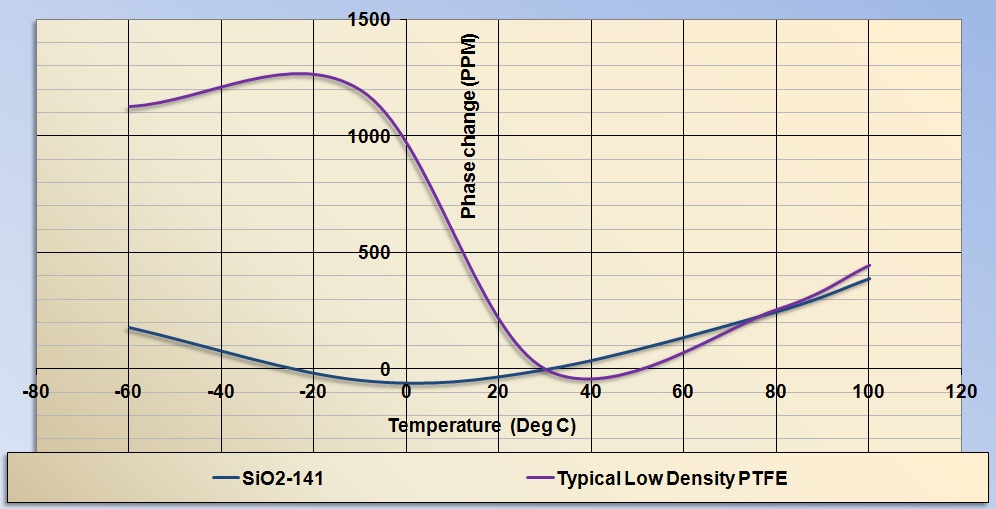

Times Microwave SiO2 phase curve
