Wavecontrol is a leading manufacturer of test equipment for measuring electromagnetic compatibility and electromagnetic fields
The measurement equipment for portable or fixed usage was developped for tests according to EU directive 2013/35/EU, ICNIRP, BGV B11, DGUV Vorschrift 15 and the German EMV-Verordnung.
Wavecontrol product overview

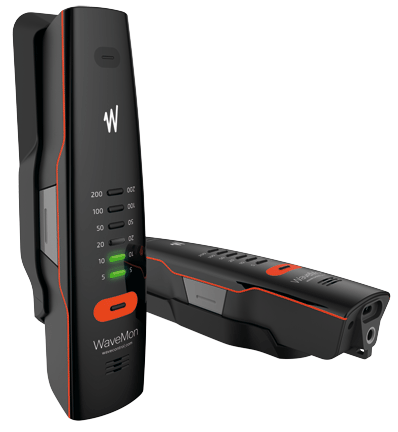

All products of Wavecontrol will be delivered calibrated by the factory, which is accredited by ENAC.WaveMon RF-8 personal safety monitor for electromagnetic immission
Wavecontrol developped WaveMon to enable every person working in an environment with potential health risks due to electromagnetic fields to have the possibility to
measure permanently the electromagnetic immission and compare with the regulated limits.
- E-field and H-field monitoring
- measurement of electric field strength from 1MHz to 8 GHz
- measurement of magnetic field from 27 MHz to 1 GHz
- display in % of allowed immission limit (ICNIRP98 or directive 2013/35/EU)
- alarm with optical and acoustical signals and vibration
- built-in GPS receiver and altimeter for geolocalization
- built-in data logger
- AA-batteries, rechargeable via USB
WaveMon LF-400 safety monitor for low frequency electromagnetic fields
WaveMon LF-400 has the same functionality as RF-8 but is optimized for static magnetic fields (H-field) and low frequencies from 10 Hz to 400 kHz.Dataasheet Wavecontrol WaveMon LF-400

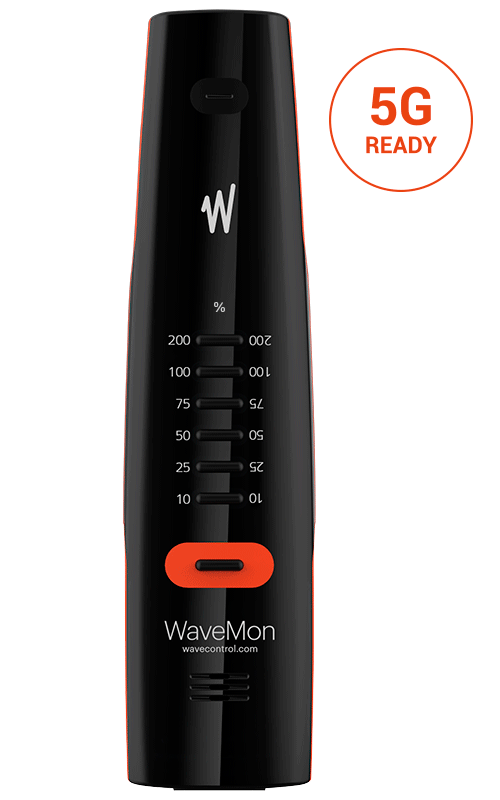

New: WaveMon RF-60 personal safety monitor for electromagnetic fields up to 60GHz
- 5G ready
- measurement of electric field strength from 1 MHz to 60 GHz
- display in % of allowed immission limit (ICNIRP98 or directive 2013/35/EU)
- alarm with optical and acoustical signals and vibration
- built-in GPS receiver and altimeter for geolocalization
- built-in data logger
- AA-batteries, rechargeable via USB, battery autonomy one month
Handheld Tester for electromagnetic Field Strength (EMF-Meter)

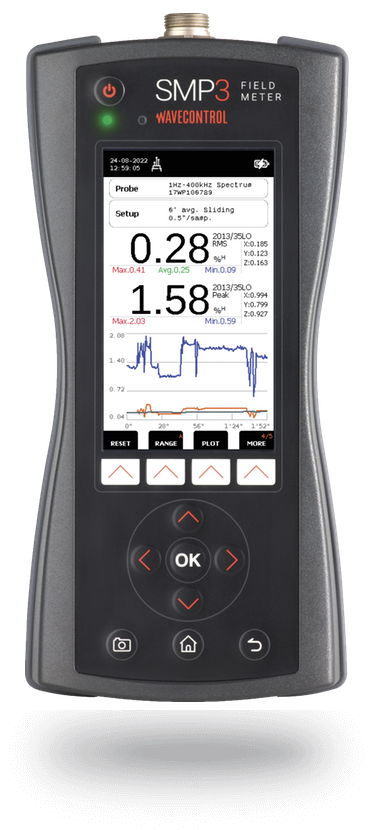

SMP3 is a portable electromagnetic field monitoring system, easy to use but with great features:- spectrum analysis of frequency range 1 MHz to 10 MHz
- time domain evaluation, weighted peak method 1 MHz to 10 MHz
- E-field and H-field frequency domain analysis
- broadband measurements DC to 60 GHz
- built-in GPS receiver
- USB and optical connectors for data output and remote control
- real time graphical display
- includes calibration in certified lab
- delivered with PC software for data reading, remote control and documentation
- built-in exposure limit values according to EU directive 2013/35/EU, BGV B11 and DGUV 15
- user interface in English, German, French and other languages
Field Probes for EMF-Meter SMP3
All field probes and their measurement ranges from DC to 60 GHz are automatically detected by the EMF-meter SMP3.WPH-DC field probe for H-field DC to 40 kHz
Magnetic field probe for selective and broadband H-field measurementsH-field measurement range: 10 µT to 10 T
Data sheet H-field probe WPH-DC
WP50 field probe for E- and H-field 10 Hz to 3 kHz
100 cm² sensor area, enables high sensitivity E-field: 2.5 V/m to 20 kV/m
H-field: 250 nT to 2 mT
Data sheet isotropic E- and H-field probe WP50
WP400-3 field probe for E- and H-field 1 Hz to 400 kHz
High accuracy with only 3cm² sensor areaE-field: 10 V/m to 400 kV/m
H-field: 200 nT to 50 mT
Data sheet isotropic E- and H-field probe WP400-3

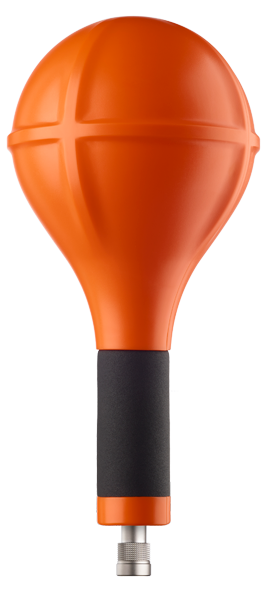

WP400 field probe for E- and H-field 1Hz to 400 kHz
100cm² sensor area, enables high sensitivityE-field: 1 V/m to 100 kV/m
H-field: 50 nT to 10 mT
Data sheet E- and H-field probe WP400
WPH60 H-field probe 300 kHz to 60 MHz
Measurement range 0.018 A/m to 20 A/mhigh frequency and level linearity
Data sheet isotropic H-field probe WPH60
WPH1000 H-field robe 30 MHz to 1 GHz
Measurement range 0.02 A/m to 20 A/mhigh frequency and level linearity
Data sheet isotropic H-field probe WPH1000

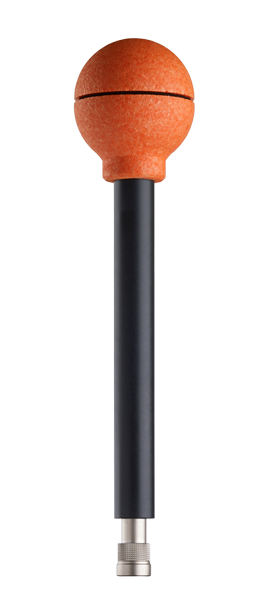

WPF3 isotropic E-field probe for 100 kHz to 3 GHz
E-field Measurement range 0,2 V/m to 130 V/mWPF3-HP 0,2 V/m to 1000 V/m
Data sheet isotropic E-field probe WPF3
WPF6 isotropic E-field probe for 100 kHz to 6 GHz
E-field Measurement range 0,3 V/m to 130V/mWPF6-HP 0,3V/m to 1000 V/m
Data sheet isotropic E-field probe WPF6
WPF8 isotropic E-field probe for 100 kHz to 8 GHz
E-field Measurement range 0,3 V/m to 130 V/mWPF8-HP 0,3 V/m to 1000 V/m
Data sheet isotropic E-field probe WPF8
WPF18 isotropic field probe for 300 kHz to 18 GHz
E-field probe for true RMS measurements with high accuracyData sheet isotropic E-field Messprobe WPF18
WPF40 isotropic E-field probe for 1 MHz to 40 GHz
E-field strength 1 V/m to 1000 V/mData sheet isotropic E-field probe WPF40
WPF60 isotropic E-field probe for 1 MHz to 60 GHz
E-field strength 1 V/m to 1000 V/mData sheet isotropic E-field probe WPF60

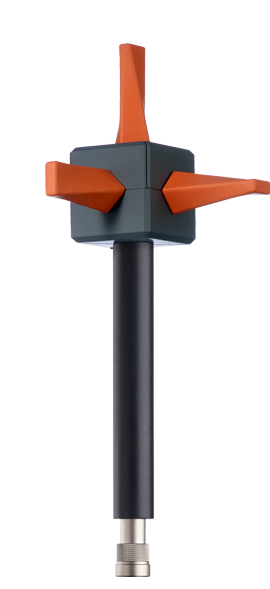

WPT isotropic field probe for cellular bands
The isotropic E-field-probe WPT covers all cellular bandsfrom 700 MHz to 2.6 GHz with high sensitivity.
Measurement range 0.04 V/m to 65 V/m
Data sheet isotropic cellular bands E-field probe WPT
WP-WiFi isotropic field probe for WiFi
The isotropic E-field-probe WP-WiFi is optimized for the ISM-Band at 2.45 GHz.Other frequency bands are suppressed.
Measurement range 0.04 V/m to 65 V/m
Data sheet WiFi band E-field probe WP-WiFi
Equipment for permanent and automatic Measurements of Electromagnetic Fields

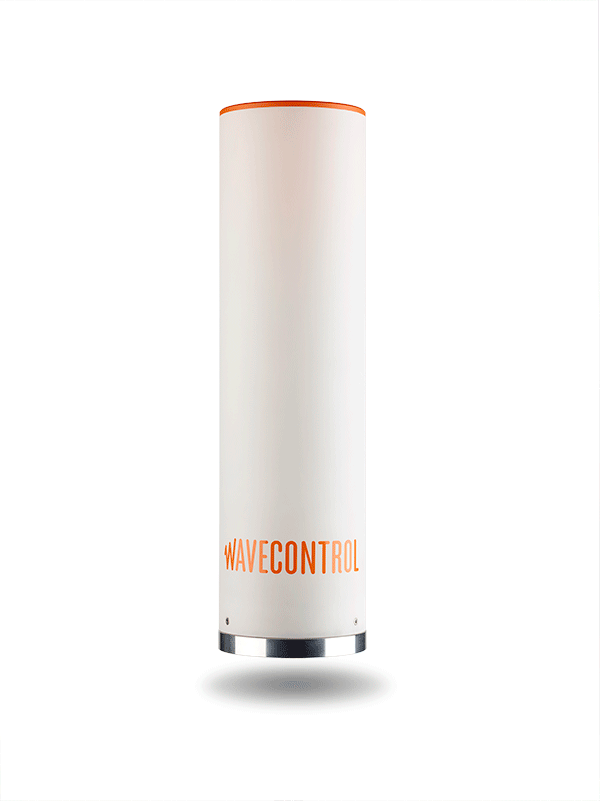

MonitEM-Lab EMF-meter for continious EMF-measurements in buildings
MonitEM-Lab is optimized for the usage in buildings where it permanently monitors electromagnetic fields
- autonomous monitoring of electromagnetic fields according to ITU-T K.83
- frequency range E-field 100kHz to 40GHz with probes WPF-3 to WPF-40
- frequency range H-field 300 kHz to 1000 MHz with probe WPH-1000
- built-in Ethernet modem for data transfer
- individually programmable alarm levels
- remote controllable via Data Control Center from your PC
- mounting options: on a wall, on a mast or on a tripod

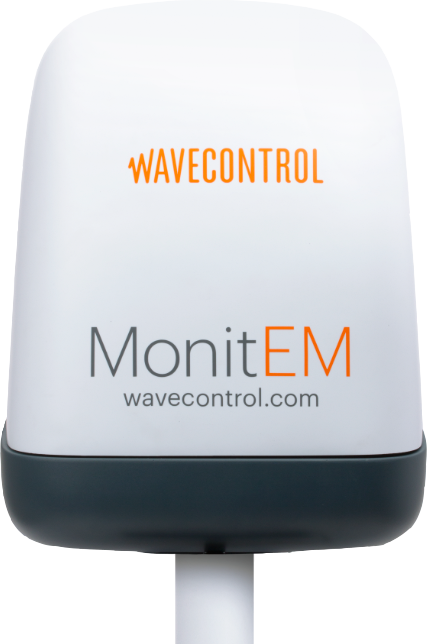

MonitEM EMF meter optimized for continuous outdoor measurements of electromagnetic fields
- autonomous monitoring of electromagnetic fields according to ITU-T K.83
- dustproof and waterproof according to IP66
- transmits data to control center for continuous supervision
- integrated interchangeable isotropic field probes, up to 60 GHz
- individually programmable alarm levels
- remote controllable via Data Control Center from your PC
- DC power supplied by solar panel
- communication via built-in GPRS/UMTS modem

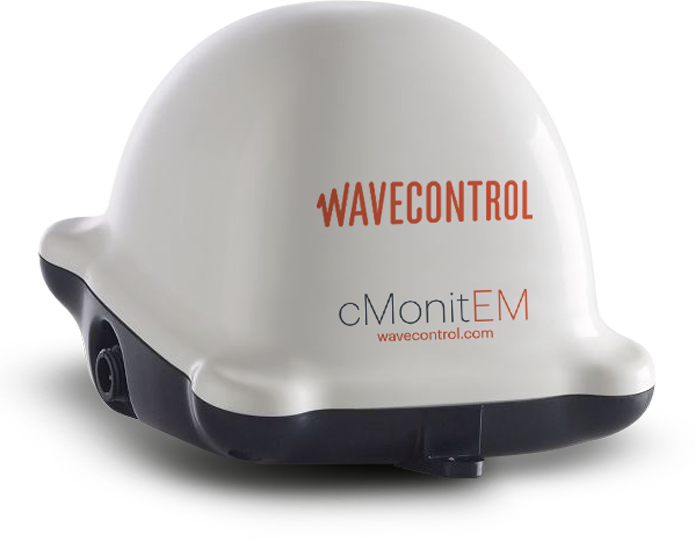

cMonitEM compact EMF meter for continuous indoor and outdoor measurements of electromagnetic fields
- autonomous monitoring of electromagnetic fields
- compact housing for indoor and outdoor usage
- integrated isotropic field probe
- remote controllable via Data Control Center from your PC
- two versions: 2.4 GHz ISM band coverage or cellular bands (GSM, UMTS, LTE)
- measurement range 0.04 V/m to 65 V/m (RMS)
- communication via built-in GPRS modem

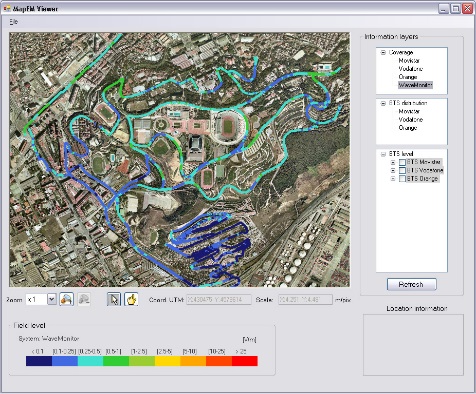

Field Strength Drive Test Unit and Software
MapEM is a system for conducting and documenting drive tests- test equipment for electromagnetic field strength test with cars
- based on MonitEM hardware
- software for EMF drive test mapping
- very easy to use and practical solution
- results presented in a map or on an aerial photo
- easy understanding and sharing of the results
Calibration of EMF Meters
Thanks to its ISO 17025 accreditation, Wavecontrol Labcal can calibrate most of the EMF meters in the market. Enjoy the best service, the best pricing and the best delivery time!
Wavecontrol calibration scope:
- Electric field:
- 3 Hz – 40 GHz (ISO 17025 ILAC accredited)
- 18 – 60 GHz (Traceable)
- Magnetic field:
- 10 Hz – 100 kHz (ISO 17025 ILAC accredited)
- 100 kHz – 1000 MHz (Traceable)
